RV-ADU ParkSide™ Series

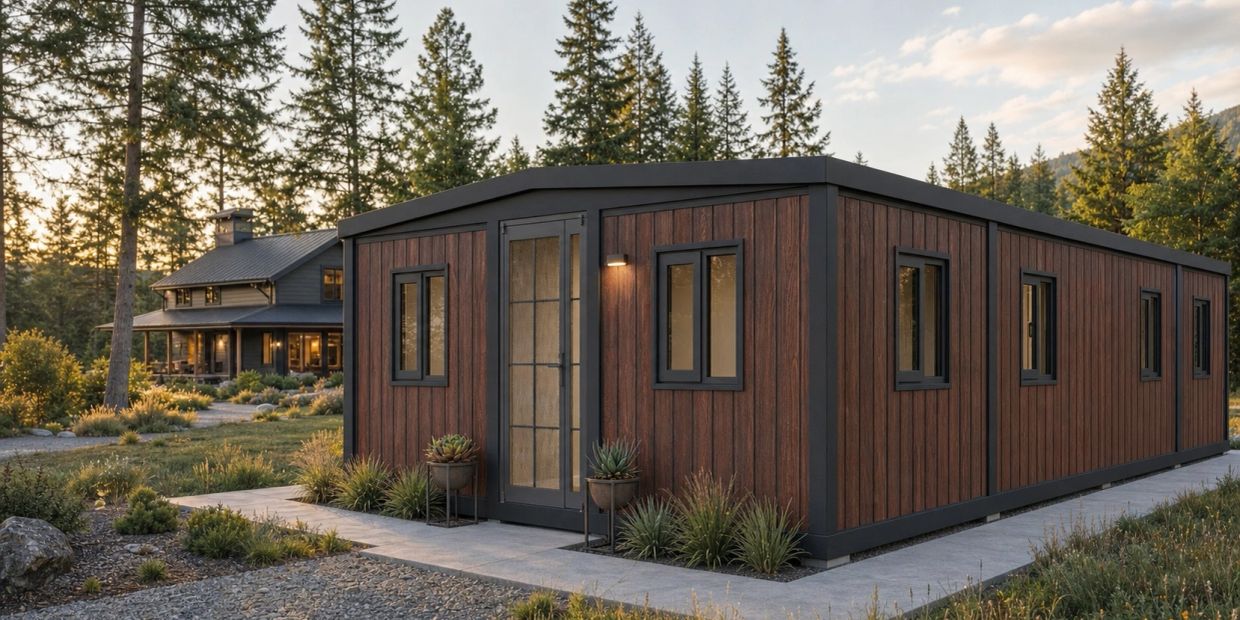

The ParkSide™ Retreat is a 2-bedroom model (pictured above) has roughly a 21.5'x39.5' footprint or 849+- sq ft of living space. All ParkSide™ units have a built in Solar PowerBay™ system option that truly minimizes time on the grid. Dual thermal insulated steel walls and ceilings, 1/2" concrete fiber board sub flooring on a tubular steel frame system is 5 times stronger than plywood. The floor is covered with SPC laminate, the lighting system is all LED, and the full bath resembles what you would expect to find in a resort style suite. The energy efficient windows are all dual thermal pane glass wrapped in a broken bridge aluminum frame. The model shown above is also available as a duplex RV-ADU configuration. Spec sheets available on request, call us today to discuss the options available.
UtilityMate® Mfg. LLC's Patented RV-ADU™ ( the ParkSide™ series) is a stunning example of engineering excellence. As an RV, it can be legally transported to and from any location with full RV hookups, providing a secondary housing solution behind your home or as a second residence with the ability to literally plug in and reside.
ParkSide™ Studio Flat
ParkSide™ Cottage
ParkSide™ Retreat or Duplex
ParkSide™ Retreat or Duplex

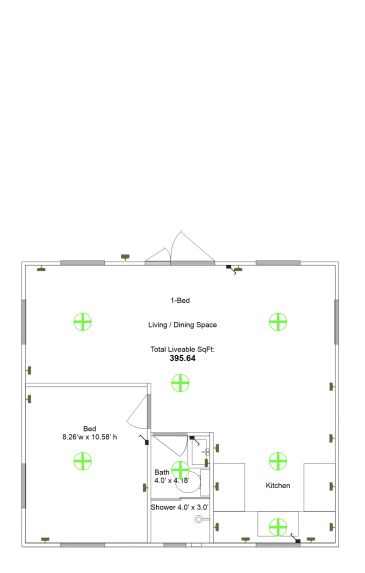

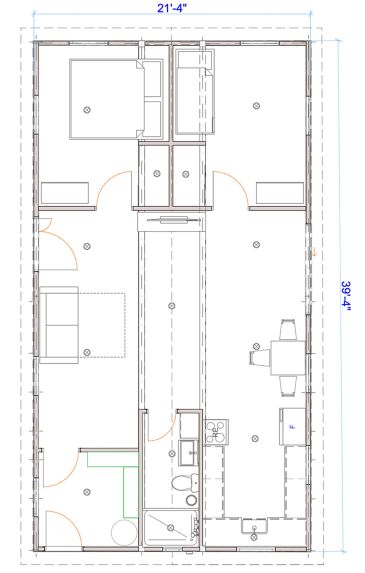

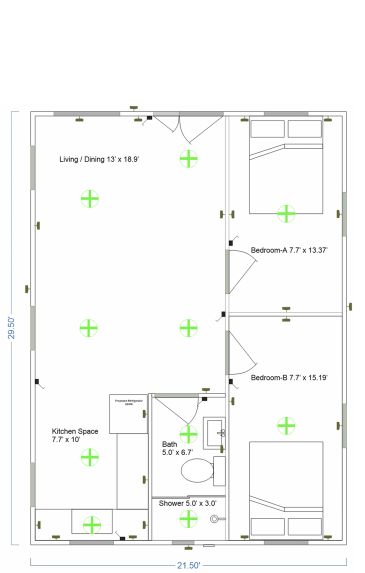

Sample Floorplans
400+ sq ft
2 bed - 600+ sq ft
2 bed - 600+ sq ft
2 bed - 600+ sq ft
2 bed - 600+ sq ft
2 bed - 600+ sq ft
2 bed - 800+ sq ft
2 bed - 600+ sq ft
2 bed - 800+ sq ft
100% Cold Rolled Steel Frame Assembly
The ParkSide™ is meticulously engineered for strength, durability, security, and low maintenance. Every buildout starts with a proprietary reinforced heavy-duty galvanized steel powder-coated frame designed to withstand the test of time and harsh weather conditions. Besides durability, the benefits of an all-steel structure manufactured with ShieldCore™ Building Products are the reduced maintenance over time, greater fire resistance, pest resistance such as termites, environmental and insurance benefits. Many insurance companies offer lower premiums for structures with all steel framing and siding due to its long-term durability and fire resistance.
ShieldCore™ Your Barrier Against Wildfires
ShieldCore™ by UtilityMate® Mfg. is commercial grade 3/4" thick thermal insulated metal exterior siding. In regions where wildfires pose a significant threat, having a reliable fire-resistant solution is crucial. ShieldCore™ offers unparalleled protection with its advanced multi-layer design, ensuring your property is safeguarded against the devastating effects of fire. Secondly, the sleek modern look not only enhance the visual appeal, they add durability and resistance to weather and fire. The metal outer layer provide protection against the elements. ShieldCore™ siding require less maintenance compared to other traditional building materials, resulting in true cost savings and less hassle.
ShieldCore™ / Dual Insulated from the Inside Out
The ParkSide™ uses only commercial grade ShieldCore™ vertical steel insulated panels (SIPs) which are comprised of an advanced insulation core (PIR) polyisocyanurate that is formed, sealed and interlocked between two finished steel facings. Then we attach a second ShieldCore™ exterior siding that runs horizontal, these are insulated (PIR) metal side panels when combined form a crossover dual insulated panels. ShieldCore™ provides the most thermally efficient panel grid system available on the market, providing an impenetrable water and vapor seal that protects your investment against extreme weather outside, while maintaining the desired temperature inside.
Commercial Flooring & Sub Floor Structure
The ParkSide™ uses SPC commercial grade flooring overlay panels that come in a variety of looks and finishes which is water resistant, easy to clean and ecofriendly. Rather than using plywood or other wood products beneath as sub flooring, all of our buildings have commercial and industrial grade concrete fiberboard as the subflooring with steel cross beams which create superior strength, durability and resistance to high moisture, fire, pests, low maintenance, and longer lifespan. Concrete fiberboard and steel have superior dimensional stability compared to wood, meaning it is not prone to warping, shrinking, or expanding with changes in temperature and humidity.
Temporary vs. Permanent
The ParkSide™ is unique from the ground up because of the way they are built, allowing the buyer the opportunity to have the building placed as a temporary or permanent structure. Why? UtilityMate® RVADU™ is actually an RV hybrid with a self-contained 30 or 50 amp electrical, water, sewer RV hookups. This allows you to easily plug in and power up regardless of location or power source (such as generators), optional solar PowerBay™ system available . Need something permanent? With the help of a qualified contractor or if you're a one of those DIY individuals, the ParkSide™ can be easily converted into a permanent living structure as a single or duplex housing unit.
